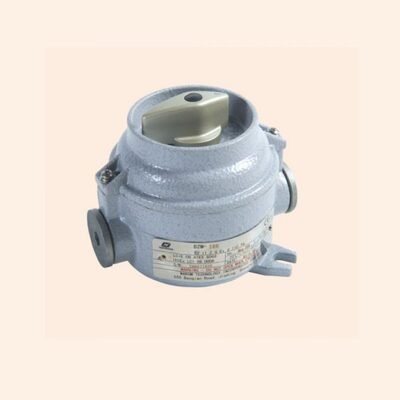

Explosion Proof Illumination Switches
Lighting That Is Explosion Proof Switches are made to manage illumination in dangerous situations in a dependable and safe manner. In sectors where flammable gases, vapors, or dust may be present, such as mining, oil and gas, and chemical processing, these switches are crucial. Designed with premium materials and cutting-edge technology, they maintain performance and durability while guaranteeing operating safety.
Strong construction, resilience to high temperatures, and adherence to international standards such as ATEX and IECEx are some of the main characteristics of explosion proof illumination switches. They are perfect for usage in areas that are prone to explosions since they are designed to stop any spark or electrical arc from setting off the surrounding atmosphere. To satisfy a range of industrial needs, these switches are available in multiple configurations, guaranteeing a smooth integration with your safety systems.
Inquiry Form
We will get in touch with you shortly
Description
| Global (IECEx) | IECEx LCI 08. 0008X |
| Gas and dust | Ex db IIC T6 Gb |
| Ex tb IIIC T80℃ Db | |
| Europe (ATEX) | LCIE 06 ATEX 6068X |
| Gas and dust | II 2 G Ex db IIC T6 Gb |
| II 2 D Ex tb IIIC T80℃ Db | |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+60℃ |
| Material | Copper-free Aluminium Alloy, powder coated surface |
| Weight | 0.85kg~0.95kg |
| Dimensions | 110mm×124mm×108mm |
| Enclosure colour | Window grey (RAL7040) |
| Switch function | On-off switch or changeover switch |
| Exposed fastener | Stainless steel |
| Rated voltage | Max. 250V AC |
| Rated current | 16A, 25A |
| Internal&external earthing | M4/M5 |
| Cable connection | 3 x (2.5~4)mm2 |
| Cable entries | Standard 2 x M25 x 1.5 plugs
2 x NPT3/4″ plugs on request |
| Cable gland(optional) | DQM-II(Ex d), DQM-III(Ex d) |
